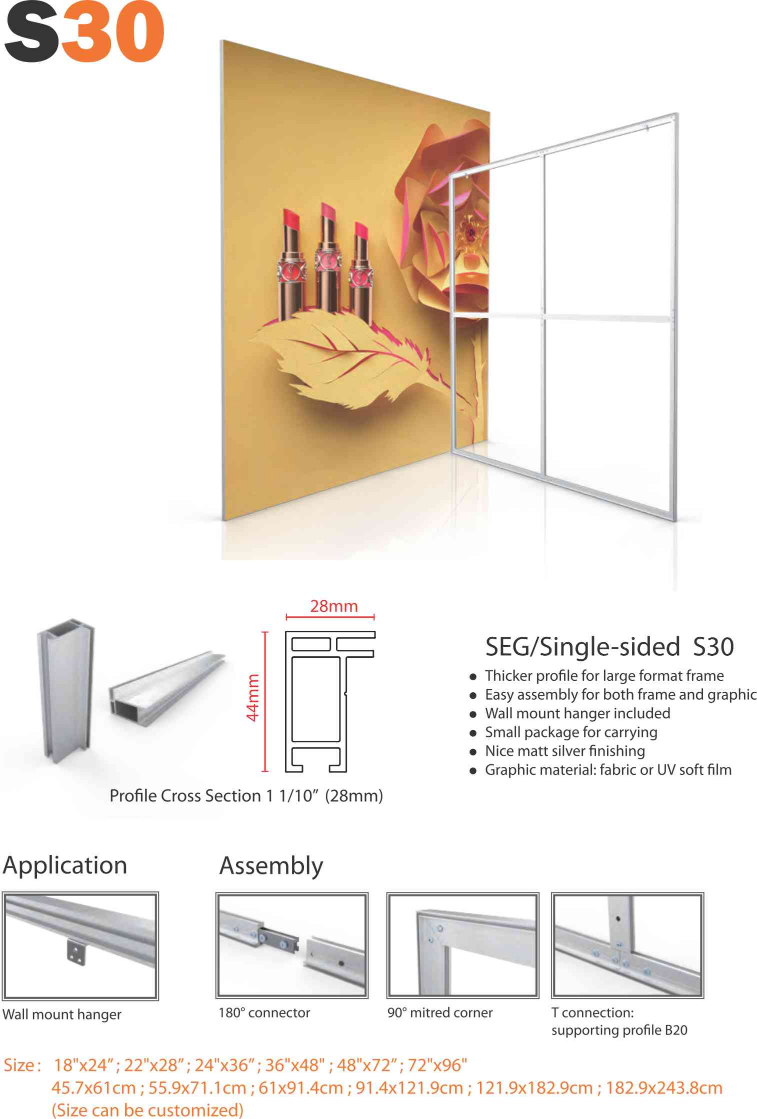

S30 SEG Frame-less Extrusion System

• Item No :

  AL-3040 / Single Sided

• Frame Color :

  Silver, Black or Custom

• Certification :

  cETL/ETL Listed, CE approved

• Frame Thickness :

  30mm (1.18")

• Frame Width :

  40mm (1.57")

• Color Temperature :

  2400K-9000K

• Dimming :

  By external dimmer (Optional)

• Mounting :

  Various mounting options, wall mount by screws, own mounting clips, leaning, pre-drilledholes or custom

• Orientation :

  Vertical or Horizontal

• Size up to :

  Custom 60” x 118″ (1500mm x 3000mm)

Our led fabric light box with vibrant colors on the fabric and the edgelit LED, it captures people's attention and takes the image to a whole new level. Simply print image on fabric and Easy to insert / remove printed fabric from the aluminum frame. The LED light board underneath the fabric will provide uniform brightness throughout the box.

No matter what type of fabric led light box you need, it is custom and made to order to accommodate the needs of different types of projects as well as unique spaces. Since our lightboxes can be made in any size, Single or double-sided, wall mounted, freestanding, or ceiling suspended, either way, you can get just the size you want to fit any size fixture.

Features for Fabric LED Boxes for Sale

• cETL/ETL Listed, CE approved
• Frame thickness: 30mm (1.18") / Single Sided
• Frame Width: 40mm (1.57")
• Color Temperature: 2400K-9000K
• Frame Color:  Silver, Black or Custom
• Dimming: By external dimmer (Optional)
• Various mounting options: wall mount by screws, own mounting clips, leaning, pre-drilledholes or custom
• Vertical or Horizontal orientation

Electrical for Fabric LED Boxes for Sale

• Energy-efficient LED strips
• LED Configuration: One (1) edge, two (2) edges, three (3) edges or four (4) edges
• Input Voltage: 12 Volt or 24 Volt DC
• Power Cord Length: Customized
• Power Supply: UL Class 2 or LPS | DC 24 Volt: Max 4.1 Amp / 98.4 Watt or CE approved
• Barrel Connector: 2.1mm Male connector on power supply | 5.5mm Female connector on LED Light Panel

Applications for Fabric LED Boxes for Sale

• Interior design for hotels/restaurants/office
• Cosmetic / jewelry display shelves and cabinets
• Back light source for wall/ceiling displays
• Menu boards / new item advertisements
• Art gallery and museum for artistic display
• Trade show displays
• Retail shop display stands and cases

Specifications for Fabric LED Boxes for Sale

13 years' Factory Experience  / OEM & ODM Accepted / cETL/ETL Listed, CE Approved Below models are the standard sizes
Dimension (in)	Dimension (mm)	LED	Power Consumption
9x48"	228.6x1219.2mm	LED 1 edge lit	DC12V  3A
24x36"	609.6x914.40mm	LED  2 edge lit	DC12V  3A
24x48"	609.6x1219.20mm	LED  2 edge lit	DC12V  5A
36x48"	914.4x1219.20mm	LED  4 edge lit	DC12V, 2pcs 5A
58x48"	1473.2x1219.20mm	LED  4 edge lit	DC12V, 2pcs 5A
72x48"	1828.8x1219.20mm	LED  4 edge lit	DC12V, 2pcs 5A
